PSM3 series is a multi-channel Linear DC power supply with 3- output channels. Its high stability and enhanced linearity make this regulated DC power supply significantly useful where high performance and stable power sources are required. It is widely adopted for R&D, educational and industrial usage.
It provides full load stable performance, intelligent ventilation fan control to minimise operation noise, and fully adjusts voltage and current readings. When output overloads, the system will automatically cut off the output to protect the connected circuit or loading. At the same time, the overload indicator will illuminate to warn the operator for further action.
In auto-tracking mode, the PSM3 series can auto-connect CH1 and CH2 output either in parallel or in series internally to provide double current or voltage output.

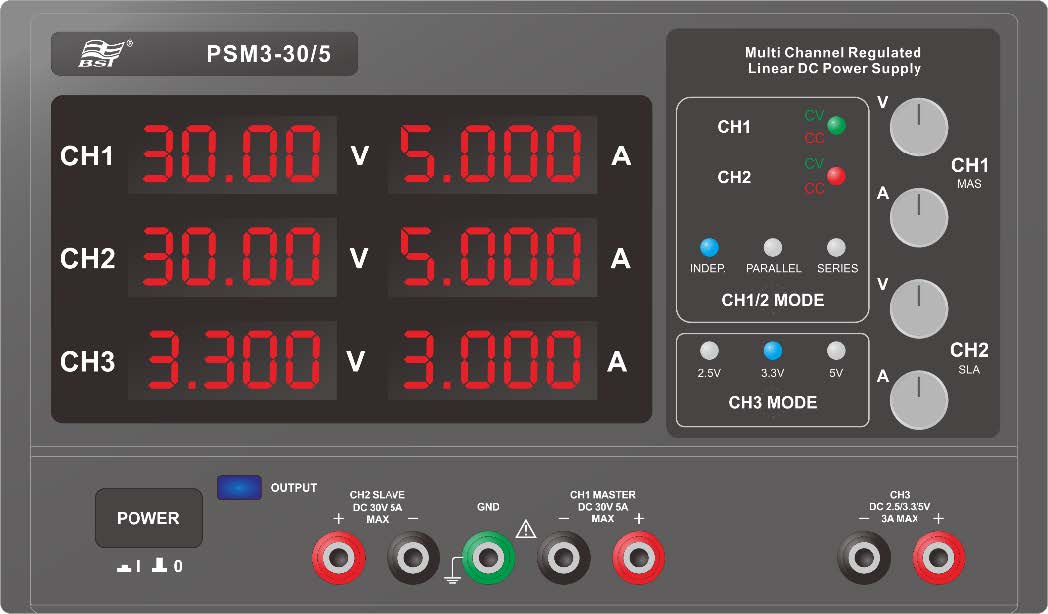

On-screen 3 sets of the output display. Operator not required to switch display, direct monitor all channel’s voltage and current usage status simultaneously.
These excellent performances with extract stability and enhanced linearity make the unit very outstanding. These power supplies are suitable for laboratory, university, high school, and workplace uses or where high performance and precision regulated DC power supply is required.
Features:
- 3 Adjustable Channels Output
- DC 0 ~ 30V Linear Voltage Adjustment (Channel1 and 2)
- Channel 1 and 2 max DC 5A Linear Current Adjustment
- Channel 3 Output Voltage Selectable DC 5.0V/3.3V/2.5V for TTL/CMOS Circuit (Channel3)
- 6 Sets of LED for Voltage and Current Output Display
- Low Noise and Ripple; Less than 1mV (5Hz ~ 1MHz)
- Voltage and Current Pre-set Feature
- CV/CC Mode Automatic Change
- Overload Indication
- Intelligent Ventilation Fan Control
- Auto Tracking Output
- Auto Parallel or Series connection
- Doubling Current with Series Connection
- Continuous Operation with Full Loading
- 110V/220V AC Power Input Switchable
- Rugged Metal Cabinet
SPECIFICATIONS
GERNERAL SPECIFICATION |
Model |
Number of Channels |
CHANNEL OUTPUT |
CH 1 |
CH 2 |
CH 3 |
Voltage |
Current |
Voltage |
Current |
Voltage |
Current |
PSM3-30/5 |
3 |
0 ~ 30V |
5A |
0 ~ 30V |
5A |
5/3.3/2.5V Switchable |
3A |
OPERATION CONDITION |
Environmental Condition |
Operating altitude <2000m, pollution degree II |
Input Voltage |
110V / 220V AC ±10% at 50/60Hz |
Operating Condition |
Temperature -10 ~ 40oC
Relative Humidity ≤80%RH (non condensing) |
Storage Condition |
Temperature -20 ~ +80oC
Relative Humidity ≤80%RH (non-condensing) |
TECHNICAL SPECIFICATION |
Channel 1 and Channel 2 (CH1 & CH2) |
Constant Voltage Mode (CV) |
Voltage Range |
0.6 to 30V |
Line Effect |
CV ≤ 0.01% +3mV (±10% of Rated Voltage) |
Loading Effect |
CV ≤ 0.02% +5mV (Output current > 3A) |
Noise and Ripple |
CV ≤ 2mVrms(Output current > 3A, 5Hz~1MHz) |
Recovery Time |
≤ 100μsec
(50% of loading effect with min. loading of 0.5A, Setting Band 15mV) |
Constant Current Mode (CC) |
Current Range |
30mA to 5A (5A model) |
Line Effect |
CC ≤ 0.2% +3mA |
Loading Effect |
CC ≤ 0.2% +5mA (Output current > 3A) |
Noise and Ripple |
CC ≤ 10mArms (Output current > 3A) |
Tracking Characteristics (in Series) |
Line Effect |
CV ≤ 0.01% +3mV |
Loading Effect |
CV ≤ 0.01% +3mV (Output current ≤ 3A)
CV ≤ 0.02% +3mV (Output current ≤ 3A) |
Tracking Transient |
≤ Master * 2% +50mA (Loading change ≤ 300mA) |
Tracking Characteristic (in Parallel) |
Line Effect |
CV ≤ 0.01% +5mV |
Loading Effect |
CV ≤ 300mV |
Tracking Transient |
≤ Master * 0.5% +10mV (Loading change ≤ 300mV) |
Channel 3 (CH3) |
Voltage Range |
2.5V/3.3V/5V |
Current Range |
3A |
Line Effect |
≤ 25mV |
Loading Effect |
≤ 25mV |
Noise and Ripple |
≤ 2mVrms(5Hz~1MHz) |
Display |
Resolution (CH1 & CH2) |
10mV/1mA |
Resolution (CH3) |
1mV/1mA |
Accuracy |
±(1% of reading + 2digits) |
Standard Environment: 23oC ±5oC ; RH≤ 75% (non-condensing)
MECHNICAL SPECIFICATION |
Dimension |
330(D) x 250(W) x 155(H) mm |
Weight |
Approx. 9kg |
Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without notice.
