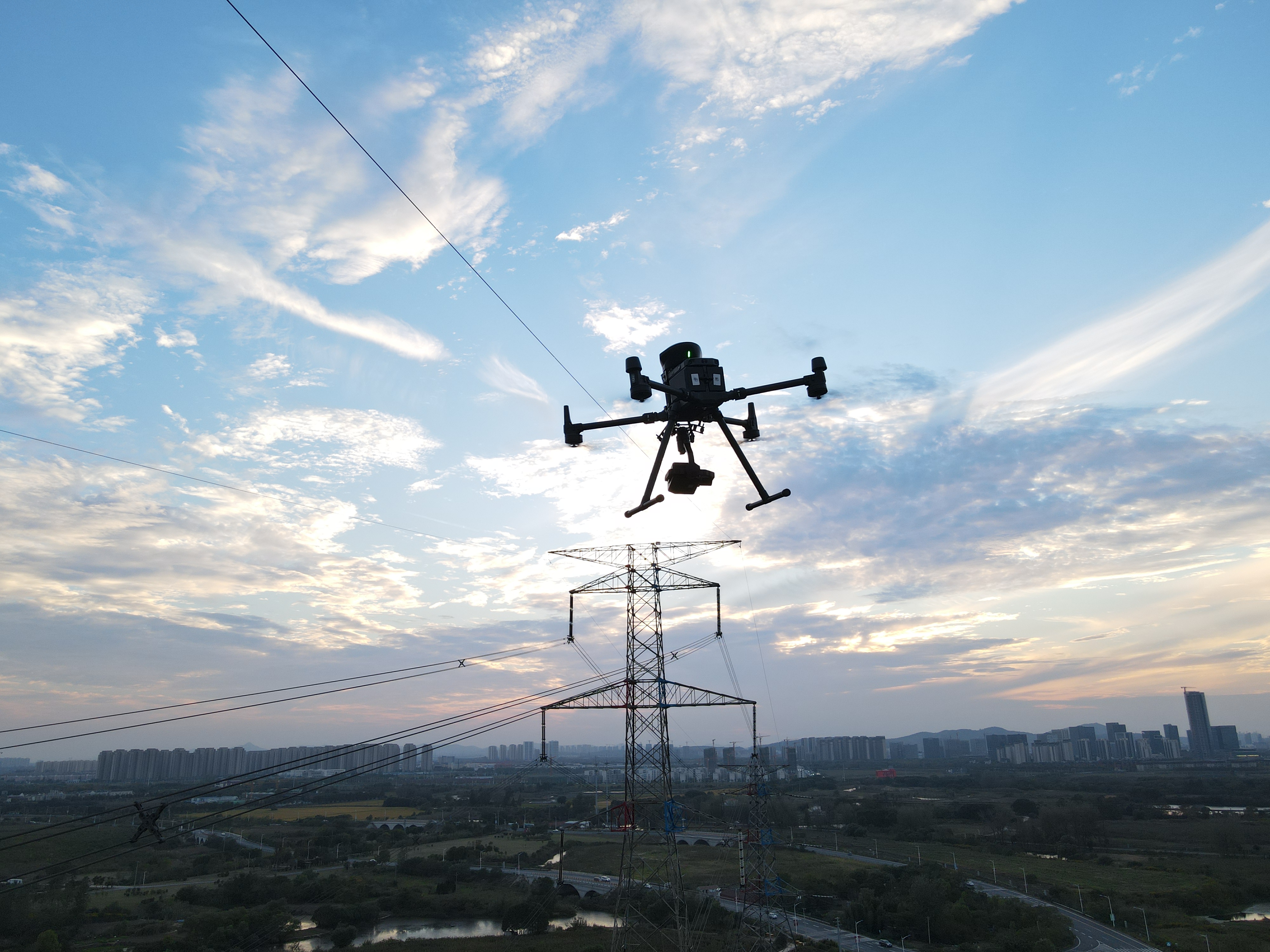

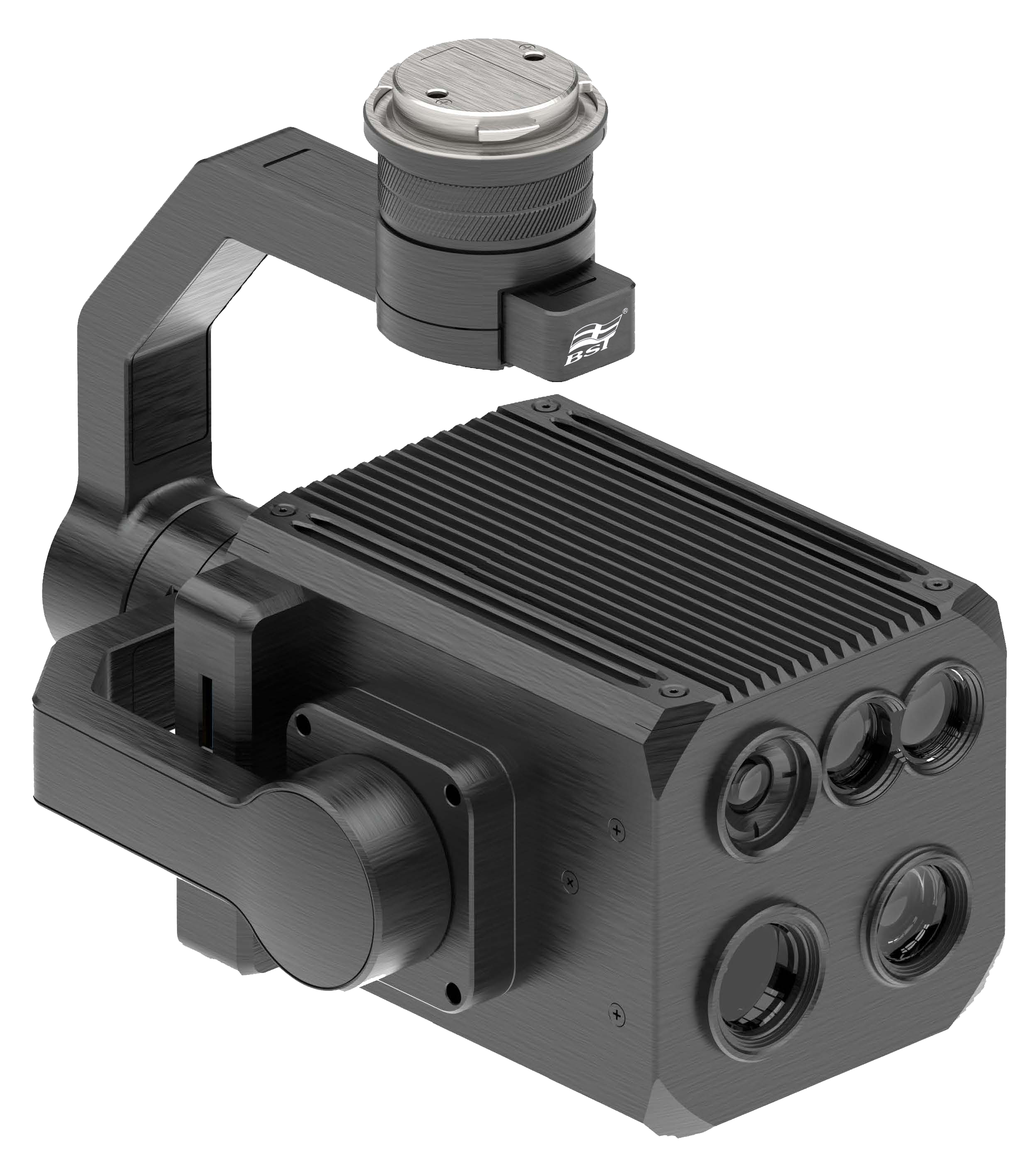

The BST BC-30 DR, the UV Corona detection drone system, is helpful and unique for pre-maintenance power equipment inspection, such as transmission, distribution and railway lines. It can also help petrochemicals, forest fire prevention, heavy industry, etc. The instrument is broadly adapted to the power system environment.
FEATURES
- Standard Pan-Tilt and excellent shock-resistance
- High integration of UV, IR, VIS & Laser
- Individual Operation Quality and Efficiency
- 4-in-1 Multi-spectral joint diagnosis
- Secured equipment and good after-sale service
TECHNICAL SPECIFICATIONS
UV CHANNEL PROPERTIES
Wavelength Range
240 nm ~ 280 nm
Discharge Sensitivity
1Pc/10m
RIV Sensitivity
3.6dBμV (RIV) @ 1 MHz@10m
UV Sensitivity
3 x 10-18 watt/cm2
Field of View
20o x 11o
Gain Adjustment
0 ~ 100%
Focus distance
2-1000m
IR CHANNEL PROPERTIES
Spectral Range
8 ~ 14μm
Temp Range
-20oC ~ +500oC
Pixel
12μm
Field of View
46o x 37o
Focus Method
Fixed Focus
Electronic Zoom
1-4 times
VIS CHANNEL PROPERTIES
Field of View
6o x 65o
Minimum VIS Sensitivity
0.1 Lux
Focal Length
3 ~ 33 mm
Digital Zoom
10x digital zoom
DISPLAY AND OUTPUT
Display Mode
UV, IR, VIS, UV+VIS, UV+IR, UV+IR+VIS
Overlay Accuracy
≤ 1mrad
Display
Drone flight control
Image Resolution
1280 x 720
Threshold Alarm
Support photon number, temperature threshold setting
Image Format
JPG & RAW
Video Format
MP4 / H.264
Corona Colour
Red, White, Blue, Yellow, Cyan, Green, Magenta
Status Information Display
Mode, Gain, Counting, Colour, Temperature, Alarm
Language
English
PHYSICAL PARAMETERS
Size(Length, Width, Height)
112 x 85 x 60 mm
Weight
550g (without PTZ); 900g (with PTZ)
IP Classification
IP45
Accessories
PTZ+ Mainframe / 64G card / U Disk / Manual / Carrying case
Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without notice.
